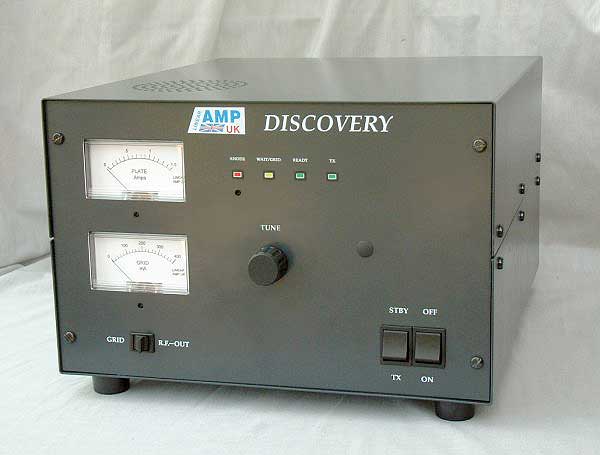

DISCOVERY
High Power Linear Amplifiers
Manufactured in UK
|
|
British made, high power 1200/1500 Watt CW 2m power amplifiers, newly introduced to North
America
|
|
Click on picture to enlarge
|
|
The rugged GS-31B and GS-35B Russian power tubes will operate for long periods at 1200W and
1500W (respectively), key down, with 80-100W drive. A heavy-duty toroidal power
transformer and integral high capacity air cooling for the tube are used to ensure reliability.
Manufactured by G3ZRS of Linear Amp UK Ltd, the DISCOVERY series amplifiers features
soft start and 3min start up timer. There is also protection for Plate over-current,
grid over-current, over-drive, and internal valve flashover. Other amateur models at
6M / 50MHz, 1.25M / 222MHz, 70cM / 435MHz. Typical delivery time is less than two
weeks. Ideal for working DX and EME.
|
| |
|
Technical Data for 2M PA
Click on picture to enlarge
|
| |
|
PARAMETER
|
SPECIFICATION
|
|
Frequency
|
144 - 148 MHz
|
|
Continuous Output
|
1200 / 1500 W
|
|
Drive Power
|
80 - 100 W
|
|
Plate Voltage
|
2800VDC
|
|
Gain
|
12 dB nominal
|
|
Power Req'ts
|
220/230VAC at
13A, 50/60Hz
|
|
Tube
|
GS-31 / GS-35
Triode
|
|
Relays
|
Coaxial O/P,
short-throw I/P
|
|
Metering
|
Plate Current, Grid
Current, RF O/P
|
|
Dimensions
|
14" wide, 9.75"
high, 17" deep
|
|
Weight
|
25kg / 29kg
|
|
Warranty
|
Full 1 year (except
tube)
|
|
top
view
bottom
view
|
|
|
| |
|
For more information or to order via credit card directly from the sole importer, please call or email Peter G8BXM, or Jill at
tel: (450)424-5666
fax: (450)424-6611
email: info@intertronicsolutions.com
|
