GI-7B, GS-31B & GS-35B
PAs designed by
YU1AW
Click on call for e-mail
222 MHz QRO
Click on schematic for zoom
Click on caption for mechanical drawings



2 x GI7B, 135cm

GS-31B, 135cm

GS-35B, 135cm

2 X GS-31B, 135cm

2 x GI7B 135cm PA
Click on drawings for zoom

Top View

Side View

End View

Bottom View

Pieces & Parts

go to the top


GS-31B 135cm PA
Click on drawings for zoom

Top View

Side View

Plate Line & Air Vent

Bottom Detail
go to the top


GS-35B 135cm PA
Click on drawings for zoom

Top View

Side View

Plate Line Detail
go to the top


Dual GS-31B 135cm PA

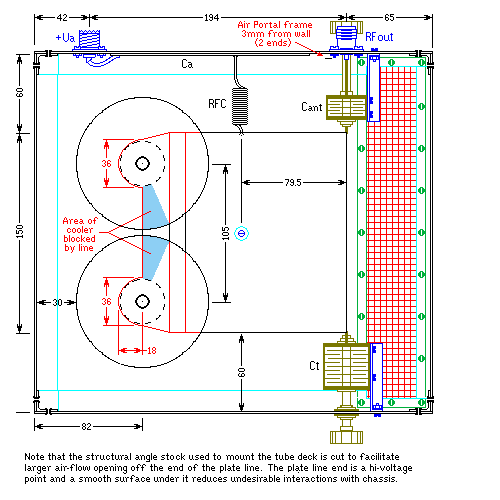

Click on drawings for zoom

Top View

Side View

Bottom Layout

View from Tube End

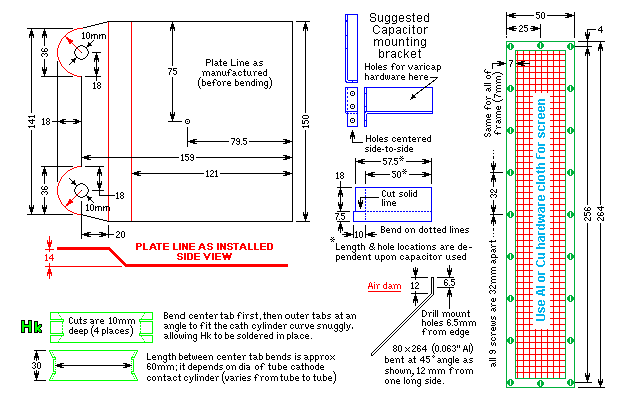

Mechanical details
