GI-7BT in an SB-230 by N8GPQ Click on callsign for e-mail |
Pictures of a Heathkit SB-230 Conversion
|
This conversion achieves over 500W output, with 40W drive, 2350 VDC on the anode and 24V
negative grid bias. Plate idle current is approximately 150mA.
|
|||
|
Click
on picture for zoom
|
|||
 Finished conversion, top view |
 Original SB-230 PA, top view |
 Original PA disassembled |
 New rear panel + added enclosure |

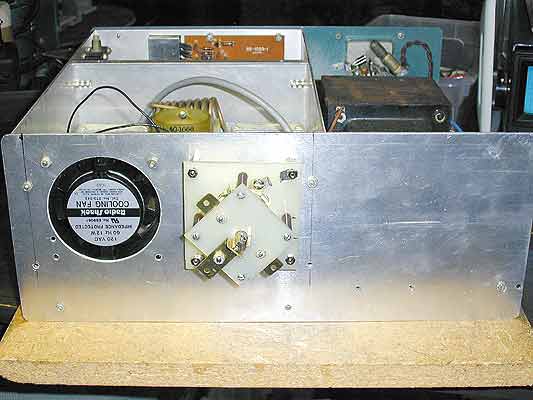

 Rear Panel with Fan & Tube Socket |
 GI7BT heater & cathode wiring |
 Rear View; Original PA Input ckt used |
 RF Compartment with GI-7BT air chimney |
 GI7BT Tube in Socket click for details |
|||
