K15-11

CAPACITORS - ceramic, fixed, non-insulated	K15-11

Fabricated in all-weather design version (V) and for moderate and cold climate.
Intended for operation as built-in components of equipment in high-power stationary high-frequency electrothermal istallations.
Non-flammable

TC group N 1500

Dissipation factor max 0,0012

Insulation resistance min 10000 M

Capacitance tolerance ą10, 20%

Operating temperature range -60 ... +100°C

Air pressure 194,0 ... 294,0 kPa

Relative air humidity V 35°C
UHL 25°C max 98%

Mah mechanical loadings (with body fixing): Vibroacceleration
Multiple-shock acceleration

1 ... 35 Hz

max 5 g
max 15 g

Guaranteed service life 15000 h

Guaranteed shelf life 12 yrs

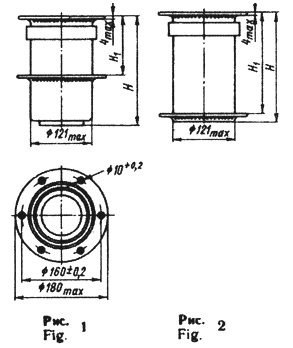

Rated capacitance Fig. Rated voltage Dimensions mm Mass,
max g Reactive power, kvar,
-60 ... +130°C

High frequency a.c. voltage, kV_eff D. s. voltage, kV H H1

UHL B

1 7 6,3 3 115ą1,5 4000 1500

5600 pF 1 12 16 8

2 15 220ą3,6 198ą2,3 6500
