High-voltage ceramic CAPACITORS - non-insulated, resin-protected, ribbon leads	K15-12
Ordering example CAPACITOR K15U-12b-2,2pF-B-OJO.460.136 TU

Used for continuous operation at radio frequencies as well as under pulsed operation and in d. c. circuits. Two forms: cold/moderate-climate (UXL) and all-climate (B).

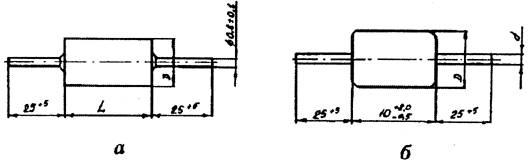

Rated capacitance pF Capacitane tolerance pF Version Reactive power kvar Dimensions, mm Mass max g L D d 0,47 ±0,1 a 0,12 7,1 3,4 - 2 0,68 0,175 4 - 1,0 ±0,25 0,25 5 - 1,5 0,3 7,5 6,3 - 3 2,2 ±0,25 b 0,4 - 8 0,8 5 3,3 ±0,5 - 4,7 0,5 - 10 1 10 6,8 ±1 - 10 -

Specifications OJ0.460.136 TY
Temperature stability groups	NP0
Dissipation factor	max 0.0012
Insulation resistance	min 10 000 M
Operating temperature range	-60 ... +100°C
Air pressure	670 ... 294 000 Pa
Relative air humidity For moderate/cold-climate form   25 °C For all-climate form                      35 °C	max 98%
Mechanical loadings Vibroacceleration 1 - 80 Hz Multiple-shock acceleration	max 5 g max 15 g
Guaranteed accrued working-time For moderate/cold-climate form For all-climate form	15 000 h 20 000 h
Guaranteed shelf life	12 yrs

---
