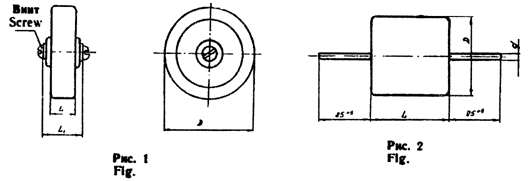

High-voltage fixed ceramic CAPACITORS - protected, non-insulated, with turned union and wire leads	K15-13
Ordefing example CAPACITOR K15U-13 - 4 kV - 4,7 pF±0,5pF- NPO - B OJO.460.162 TU

Temperature stability groups			N330, NP0
Dissipation factor	<10pF >10, but < 50 pF >50pF		not normalized max 1,2(150/C+7)l0-4 max 0,0012
Insulation resistance			min 10 000 M
Operating temperature range			-60... +85°C
Air pressure			666 ... 294 000 Pa
Relative air humidity For moderate/cold-climate form All-climate version		25°C 35°C	max 98%
Mechanical loadings: Vibroacceleration 1 ... 80 Hz Multiple-shock acceleration			max 10 g max 40 g
Guaranteed accrued working-time For moderate/cold-climate form All-climate version			15 000 h 20 000 h
Guaranteed shelf life			12yrs
Specifications			OJ0.460.162 TU

TC group P100 N750 Rated high-frequency voltage, kVeff 3,5 6 10 15 3,5 6 10 Rated direct-current voltage (for moderate/cold-climate form), kV 4 8 16 20 4 8 12 Rated direct-current voltage (for all-climate form), kV 1 4 8 10 1 4 8 Rated capacitance, pF Capacitance tolerance 1 ±0,25pF - - - - - - - 1,5 ±20% - - - - - - - 2,2 - 18x14x38x5,30 5 - - - - - 3,3 - - - - - - 4,7 ±lpF 18x8x38x5,23 4 25x14x36x6.5,40 7 - - - - - 6,8 ±20% 25x8x38x6.5,25 6 31.5x14x38x6.5,50 8 - - - - - 10 ±10%; ±20% 25x15x36x6.5,30 6 - - - - - - 15 - - - - - - - 18 - - - - - 18x14x38x5,30 5 - 22 - - - - - 25x22.4x36x6.5,65 8 27 - - - - - 33 - - - - 18x8x38x5,25 4 39 - - - - 25x14x36x6.5,40 7 47 - - - - 18x8x38x5,30 4 - 56 - - - - 18x8x38x5,25 4 - 68 - - 90x9.5x125x20,300 65 105x19x125x20,630 125 - 100 - 90x7x125x20,150 55 105x9.5x125x20,400 90 125x19x160x20,800 160 - - - 100 - - 125x13.2x160x20,500 130 - - - - 150 - 105x7x125x20,220 75 125x9.5x160x20,500 120 150x19x215x30,900 220 - - - 220 - 125x7x160x20,300 90 150x9.5x215x30,700 150 180x19x215x30,1000 300 - - - 220 - - 180x13.2x215x30,1000 225 - - - - 330 - 150x7x215x30,400 125 - - - - - 470 ±20% - 180x7x215x40,500 160 - - - - -

---
