| High-voltage ceramic capacitors, non-insulated | |
 |
|
| Ordering example CAPACITOR K15-14a-15 kV-680 pF±10%- 200 kVAr- OJO.460.152 TU |
|
|
|
| For use as built-in components of the equipmentsô internal wiring, in direct, alternating & ripple current circuits as well for pulse duty. Two forms: cold/moderate-climate (UHL) and all-climate (B). Difficult to burn. |
|
|
| TC group | NPO |
|
|
| Rated capacitance | 680 pF |
|
|
| Capacitance tolerance | ±10, ±20% |
|
|
| Rated high-frequency voltage | 15 kVeff |
|
|
| Rated direct-current voltage (for moderate/cold-climate version) | 20 kV |
|
|
| Rated direct-current voltage (for all-climate version) | 10 kV |
|
|
| Dissipation factor | max 0,0012 |
|
|
| Insulation resistance | min 10000 M |
|
|

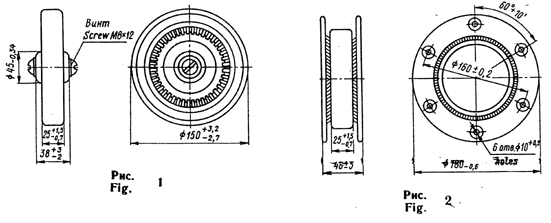

| Rated reactive power Fig. 2 |
200 kVAr 330 kVAr |
|
|
| Mass Fig.2 |
max 1800 g max 2600 g |
|
|
| Operating temperature range | -60...+100°C |
|
|
| Air pressure | 666...294000 Pa |
|
|
| Relative air humidity For all-climate form 35°C |
max 98% |
|
|
| Mechanical loadings Multiple-shock acceleration |
max 6 g max 15 g |
|
|
| Guaranteed accrued working-time | 15000 h |
|
|
| Guaranteed shelf life | 10 yrs |
|
|
