High-voltage ceramic CAPACITORS - non-insulated, compound-protected	K15U-3
Ordering example CAPACITOR K15U-3 - 6 kV - 150 pF±20% - 30 kvar- V - OJO.461.201 TU
	Used in high-power radio equipment for continuous operation at radio frequencies as well as under pulsed operation and in d. c. circuits. Two forms: moderate/cold-climate (UHL) and all-climate (V).

TC group				P60, N750, N1500
Dissipation factor	R60 N750, N 1500			0,001 0,0015
Insulation resistance				min 10 000 M
Capacitance tolerance				±20%
Operating temperature range		P60, N1500 N750		-60 ... +155°C -60 ... +100°C
Air pressure				670 ... 297200 Pa
Relative air humidity For moderate/cold-climate form All-climate version			25°C 35°C	max 98%
Mechanical loadings: Vibroacceleration Multiple-shock acceleration				max 5 g max 15 g
Guaranteed accrued working-time				15 000 h
Guaranteed shelf life				12 yrs

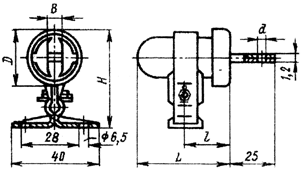

TC group P60 N750 N1500 N750 N1500 Rated high-frequency voltage kVeff 6 3 6 Rated direct-current voltage (for moderate/cold-climate form), kV 8 4 8 Rated direct-current voltage (for all-climate form), kV 4 1 4 Rated capacitance, pF 22 28x40x23x6x50x3,125 15 - - - - 33 28x40x23x6x50x3,115 15 - - - - 47 30x48x23x10x52x3,130 15 - - - - 68 34x55x23x10x55x3,180 20 - - - - 100 42x63x28x12x69x4.5,200 25 - - - - 150 52x75x32x12x79x4.5,280 30 - - - - 220 - - - 28x40x23x6x50x3,150 10 - 330 - - - 30x48x23x6x52x3,200 10 - 470 - 31.5x47.5x23x10x58x3,180 10 - 34x55x23x10x55x3,250 12 28x40x23x6x50x3,150 14 680 - 33.5x53x23x10x60x3,200 10 - 42x63x28x10x69x4.5,300 15 30x48x23x6x52x3,200 14 1000 - 42.5x63x28x12x69x4.5,250 15 28x40x23x10x50x3,140 14 52x75x32x12x79x4.5,400 20 34x55x23x10x55x3,250 18 1500 - 53x75x32x12x79x4.5,300 20 30x48x23x10x52x3,175 16 - 42x63x28x10x69x4.5,300 20 2200 - - 34x55x23x10x55x3,190 22 - 52x75x32x12x79x4.5,400 28 3300 - - 42x63x28x12x69x4.5,240 28 - - 4700 - - 52x75x32x12x79x4.5,290 30 - -

---
