Intendend for operation as built-in components of equipment under pulsed operation. Two forms: moderate/cold-climate (UHL) and all-climate (V).

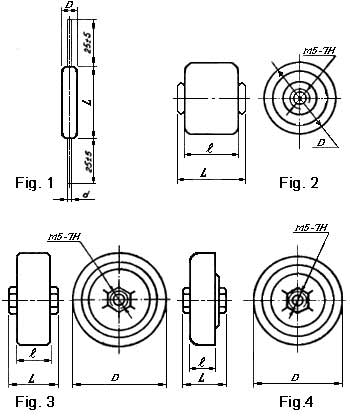

KVI-1 Fig.1

Pulse rated voltage in air, kV 10 20 Rated capacitance, rF LxDxd Dimensions, mm; Mass, g 1,5 - 25x5x0,8; 3,5 2,2 16x5x0,8; 2,5 25x6,3x0,8; 6 2,7 - 3,3 25x6,3x0,8; 6 3,9 - 4,7 16x6,3x0,8; 3,5 25x8x0,8; 8,5 5,6 - 6,8 16x8x0,8; 5,5 25x10x1,3; 10 8,2 - 10 25x12,5x1,3; 16 12 16x10x1; 6,5 - 15 25x12,5x1,3; 16 18 16x12,5x1,3; 11 - 22 16x12,5x1,3; 11 25x16x1,5:22

KVI-2 Ris. 1 Fig.1

Pulse rated voltage in air, kV 8 10 12 16 20 30 Rated capacitance, pF LxDxd Dimensions, mm; Mass, g 15 - - - - - 42x8x1,3;13 20 - - - - - 43x10x1,3;30 22 - 16x6,3x0,8;5 - - - 43x10x1,3;22 33 - 16x6,3x0,8;5 - - 25x8x1;8 - 47 - 16x8x1;6,5 - 20x8x1;7 25x10x1,3;14 - 68 - 16x10x1;8 - 20x10x1,3;12 25x12,5x1,3;17 - 100 16x8x1;6,5 - 20x12,5x1,3;14,5 25x14x1,3;20 - 150 - 16x13x1,3;14 16x14x1,3;24 20x14x1,3; 18 - - 220 - 16x14x1,3;28 - - - -

KVI-3

Pulse rated voltage in air, kV 5 6,3 10 12 16 20 Rated capacitance, pF LxDxl Dimensions, mm Mass, g; Fig. 150 - - - - - 20x30,5x25 50;2 220 - - - 20x23,5x16 38;2 20x21x16 35;2 22x28x25 60;2 330 - - 20x20x13 35;2 22x21,5x16 44;2 22,4x21x16 39;2 25x29,5x25 80;2 470 - - 22x19x13 38;2 25x19x12,5 37;2 25x21x16 45;2 32x32x25 130;2 680 - - 25x18,6x13 44;2 28x19x12,5 46;3 32x21x16,5 75;3 36x29,5x25 165;2 1000 - - 28x16,5x13 40;3 31,5x17x12,5 48;3 40x22x16,5 115;3 - 1500 - - 35,5x18x10 57;3 40x19x13 82;3 - - 2200 - - 40x18x10 65;3 50x20x13 175;3 - - 3300 - - 50x18x10 93;3 63x19x13 190;4 - - 4700 50x16x10 80;3 50x15x13 130;3 63x21x10 150;4 75x24x13 270;4 - - 6800 - - - 90x23,5x13 375;4 - -

Pulse mode parameters KVI-1 Pulse repetition frequency, Hz, max Pulse duration, ms <10000 ot 0,04 do 1000 from 0,04 to 1000 KVI-2 KVI-3 Pulse repetition frequency, Hz, max Pulse duration, ms < 5 000 ot 0,1 do 1000 from 0,1 to 1000

Temperature stability groups of capacitors KVI-1 of capacitors KVI-2 and KVI-3	M1500 N1500 H30
Capacitance tolerance for capacitors KVI-1 of capacitance values < 10 pF for capacitors KVI-1 of capacitance >10pF for capacitors KVI-2 and KVI-3	± 0,5 pF ±10% ±20%
Dissipation factor for capacitors KVI-1 for capacitors KVI-2 and KVI-3	0,0015 0,0020
Insulation resistance	min 10 000 M
Operating temperature range for capacitors KVI-1 for capacitors KVI-2 and KVI-3	-60 ... +125°C -60 ... +100°C
Air underpressure	53 300 Pa
Relative air humidity For moderate/cold-climate form For all-climate form	max 98%
Mechanical loadings Vibration in the frequency range form 1 to 200 Hz with vibroacceleration Multiple-shock acceleration	max 10 g max 15 g
Guaranteed accrued work-time	25 000 h
Guaranteed shelf life	12yrs
Specification:	OJ0.460.129 TU

---
