GI-7b/GI-70b/GI-7bT

Microwave Triode

The GI-7b, GI-70b and GI-7bT microwave triode operates as an oscillator or an amplifier in continuous-wave or pulsed mode with anode modulation in the centimetric and decimetric wavelength ranges. The GI-7"b" is available in two variants differing in the type of cooling: the GI-7b with a heat sink for forced air cooling and the GI-70b with no heat sink for other systems of cooling. The GI-7b is physically identical to the GI-6b and GS-9b, although there are electrical differences. The GI-7bT comes with heat sink only, is more shock- and vibration-proof, and has a larger ceramic structure. It is designed to be used in Tanks. The "bT" varies in a few parameters from the "b", and these variations are noted in the tables below. As with most Russian power triodes, the heat sink on the GI-7b & GI-7bT is removable.

NOTE: Myriad tests have been conducted regarding the use of this tube for PAs at 23cm. It is possible to derive a stable output of of up to approximately 250W from a single tube GI7B cavity PA, and designs for such PAs can be found on this web site. Even with outstanding cooling, higher powers result in severe thermal drift problems. The most forgiving design is by OK1KIR, because it uses a 1/4 w.l. anode cavity which is quite broadbanded compared with the 3/4 w.l. cavities normally used. Even the extensive additional cooling measures used in the OK1KIR design do not solve the thermal drift problems. Additionally, this design will not accept the GI7BT due to physical limitations imposed by internal cavity dimensions. In short, the GI7's internal dimensions are simply too big (too large in terms of electrical wave length) to allow this tube to be used effectively at 23cm. The GI7 IS, however, well suited for use in single and multiple-tube PAs from HF through 70cm, and designs for such PAs are also on this web site (with more added as found!).

GENERAL

Cathode: indirectly heated, dispenser, oxide-coated.

Envelope: metal-ceramic.

Cooling: 24 m³/hr forced air (GI-7bT; 27 m³/hr). For 350W dissipation, 40 m³/hr is required by all!

Height, mm, at most: with heat sink: 110.5

without heat sink: 97

Diameter, mm, at most: with heat sink: 65

without heat sink: 36.3+

Mass, gm, at most: with heat sink: 330

without heat sink: 170

gi7bT gi70b

gi70b

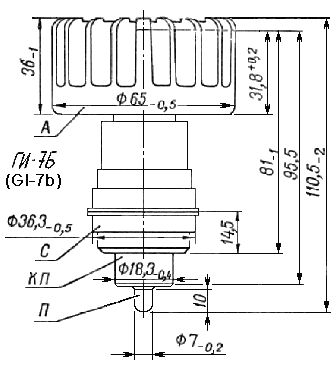

gi7 dia
A - anode; C - grid; KP - cathode and heater;
P - heater Note the physical difference of the GI-7bT compared to the GI-7b is in the "ceramic" portion of the body; 47mm diameter instead of a bit less than 36mm! gi7bT

OPERATING ENVIRONMENTAL CONDITIONS

Vibration loads:

frequency, Hz 5-600

acceleration, m/s² 59

Multiple loads with acceleration, m/s² 342

Single impacts with acceleration, m/s² 1,465

Linear loads with acceleration, m/s² 490

Ambient Conditions:

Temperature, °C -60 to +100

Relative humidity at up to +40 °C, % 95-98

NOMINAL ELECTRICAL PARAMETERS

Heater voltage, V 12.6

Heater current, A 1.925

Mutual conductance (V_a = 1.2 kV, I_a = 150 mA, change in V_g = 1V), mA/V: >23

Operating point (negative V_g with V_a = 1.3KV, I_a = 150mA), V: 10

input capacitance, pF: 11.1

output capacitance, pF: 4.6

transfer capacitance, pF: 0.075

Warm up time (V_a = 400V), at most 90

Output, CW operation (V_a =1.05KV, I_a =300mA, wavelength 18.5 cm), W (GI7b / GI7bT): >30 / >40

Output in pulsed operation (at peak V_a = 9KV, I_a = 7.5A, wavelength 10 cm,
1/pulse duty factor 1,400-150, pulse duration 3-10 顪), KW (GI7b / GI7bT): >11 / >12

Designed Tube Life (hours) >650

ELECTRICAL PARAMETER LIMITS

Heater voltage, V 12-13.2

Heater current, A 1.8-2.05

Mutual conductance (V_a = 1.2 kV, I_a = 150 mA, change in V_g = 1V), mA/V: 20-26

Operating point (negative V_g with V_a = 1.3KV, I_a = 150mA), V 7.5-12.5

input capacitance, pF 10-12.2

output capacitance, pF (GI7b / GI7bT): 4-5.2 / 4.2-5.0

transfer capacitance, pF: 0.055-0.095

Maximum CW Anode voltage (V_a), KV: 2.5

Maximum Instantaneous value Anode voltage (V_a), KV: 5

Instantaneous value Grid voltage (V_g), V -400 to +80

Maximum CW Cathode current (I_c), r.m.s./key down, A 0.6 / 0.4

Anode Dissipation, W: 350

Grid Dissipation, W: 7

Temperature at anode lead, °C 200

Temperature at radiator, °C 160

Temperature at cathode leads, °C 100

Temperature at grid leads, °C 200

Temperature at external ceramic parts, °C 250

Minimum wavelength in CW operation, cm 10

Minimum wavelength in pulsed operation, cm 9

gi7b
Air
m³/hr
gi7b
P_a, W

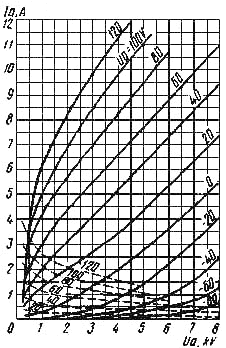

Averaged Anode Characteristic Curves:
U_f = 12.6V

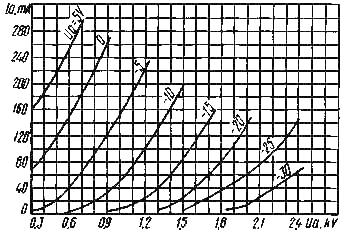

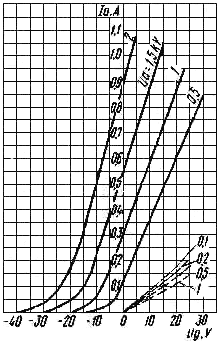

Averaged Anode-Grid Characteristic Curves:
U_f = 12.6V

ContinuousWave Generation:
L = 18.5cm

gi7b gi7b

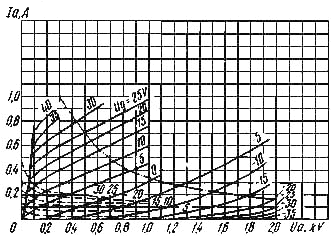

Averaged Anode Characteristic Curves:
U_f = 12.6V;
_____ anode;
_ _ _ grid-anode;
