gu-43b

GU-43b

Tetrode

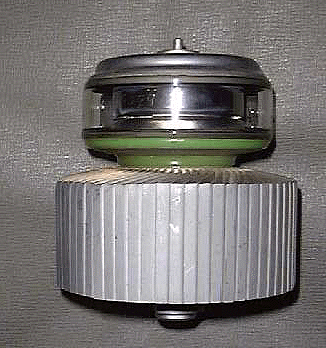

The GU-43B tetrode is used for wideband power amplification at frequencies up to 100 MHz in RF equipment. This tube is generally considered analogous to the 4CX1000.

GENERAL

Cathode: indirectly heated, oxide-coated.

Envelope: metal-to-glass.

Cooling: 100 m³/hour forced air.

Height, mm, at most: 125

Diameter, mm, at most: 101

Mass, Kg, at most: 1.5

GU-43b

GU-43b

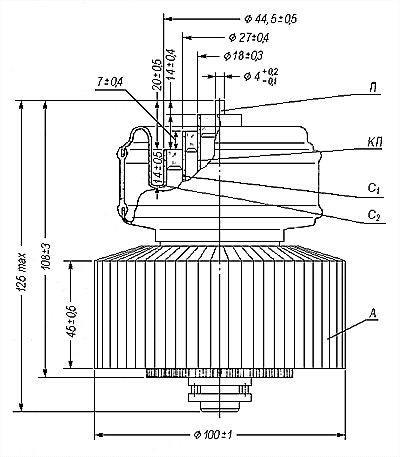

C₁ - grid 1; KP - cathode & heater; P - heater; C₂ - grid 2; A - anode

GU-43b

ENVIRONMENTAL OPERATING CONDITIONS

Vibration loads:

frequency, Hz 10-200

acceleration, m/s² 58

Multiple impacts with acceleration, m/s² 342

Ambient Conditions:

Temperature, °C -60 to +150

Relative humidity at up to +40 °C, % 98

NOMINAL ELECTRICAL PARAMETERS

Heater voltage, V 12.6

Heater current, A 6.6

Mutual conductance (V_a = 1KV, V_g2 = 300V, I_a = 600mA, change in V_g1 = 2.5V), mA/V: 45

Anode current (I_a) with V_a = 3KV, V_g1 = -50V, V_g2 = 350V, A: ~0.9

Negative bias (V_g1) with V_a = 1KV, V_g2 = 350V, I_a > 800mA, V: 20-30

input capacitance, pF 90

output capacitance, at most, pF 14

transfer capacitance, pF <0.1

Warm up time, s: <180

AB₁ Output, V_a = 3KV, I_a ~0.9A, V_g1 = -50V, V_g2 = 350V, I_g1 < 0mA, I_g2 < 80mA, KW: >1.6

Designed Tube Life (hours) >1000

ELECTRICAL PARAMETER LIMITS

Heater voltage, V 12.6 +/- ?

Heater current, A 6-7.2

input capacitance, pF 80-100

output capacitance, pF 10-18

Maximum CW Anode voltage (V_a), KV: 3.3

"Maximum" Control Grid voltage (V_g1), V -200

Maximum Screen Grid voltage (V_g2), V 500

CW cathode current (I_c), A: 1

Peak cathode current (I_c), A: 3.2

Anode Dissipation, W: 1000

Screen Grid (G2) Dissipation, W: 28

Control Grid (G1) Dissipation, W: 5

Temperature at envelope (hottest point), °C 150

Frequency, MHz: <100

gu-43b
Averaged Anode Characteristic Cooling Curves:
Anode T °C plotted against Airflow, m³/sec vs P_a

gu-43b

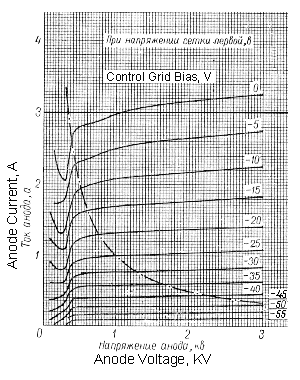

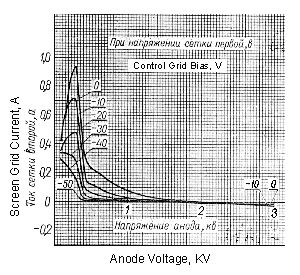

Averaged Anode Characteristic Curves:
^___ . ^___ . ^___ P_a Dissipation: U_f = 12.6V; U_g2 = 350V;

gu-43b

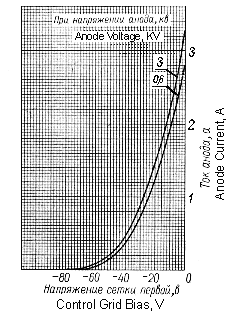

Averaged Anode Characteristic Curves:
U_f = 12.6V; U_g2 = 350V
