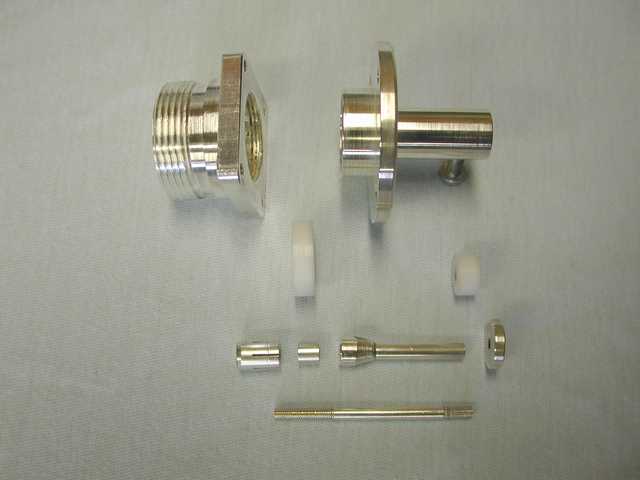

THE PA3CEG 23 CM GS35b PA Parts | |||||
|

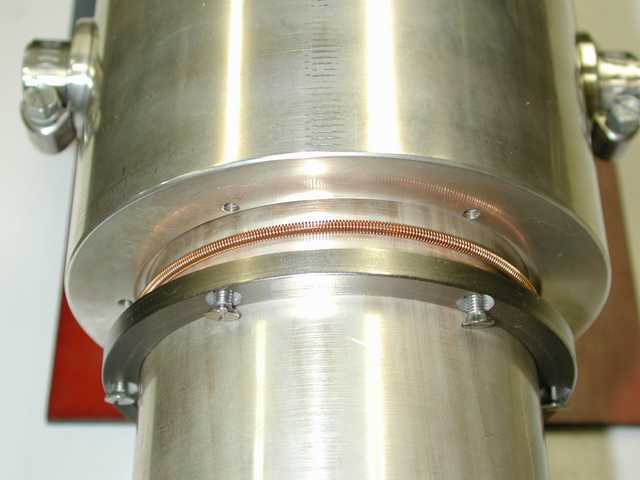

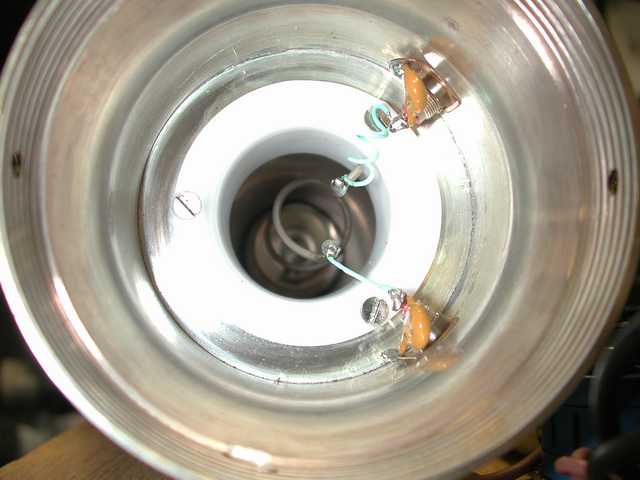

The anode and grid connection is made with spiral phosphor bronze Ø 0.35 mm wire o.d. Ø 2.15 mm for optimal contact. HF decoupling of the anode is very near to the ceramic part of the GS35b. If necessary, it's possible to move all the parts for tuning. |
|||||
|
|||||
I am still working to optimize the construction and decrease thermal drift. If you have any comments or suggestions for optimizing, please contact me by email at PA3CEG@AMSAT.ORG. |
|||||
