YU1AW 2M GS31B

144MHz GS-31B QRO
PAs designed by
YU1AW
Click on call for e-mail

Click on schematics for zoom
Click on captions for mechanical drawings

GS-31B 2m PA with Output Coupling Loop
Click on drawings for zoom

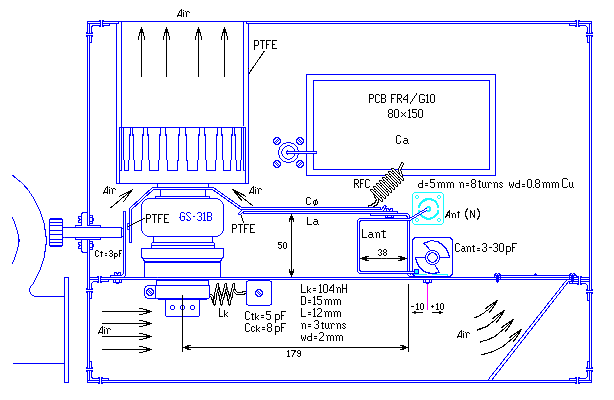

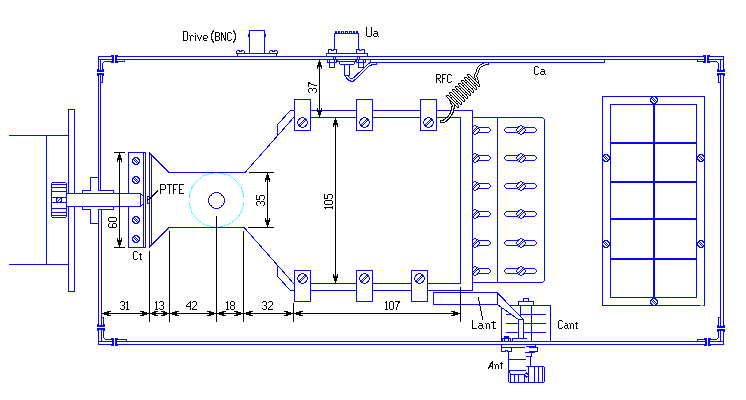

Top View

Bottom View
Side View
End View

go to the top

GS-31B Door Knob PA *Click* on drawings *for zoom*
Side View	Top View

GS-31B PTFE PA *Click* on drawings *for zoom*
********I'm working on it (25 Feb '03)********
End View	Side View	Top View

GS-31B 2m PA with Output Coupling Loop *Click* on drawings *for zoom*
Top View Bottom View	Side View	End View
