"EASY-BUILD" 144 MHz QRO |
|
144MHz PAs designed using HF techniques by YU1AW Click on call for e-mail |
|
GI-7B |
|
GS-31B |
|
GS-35B |
 1 x GI-7B |
 2 x GI-7B |
|

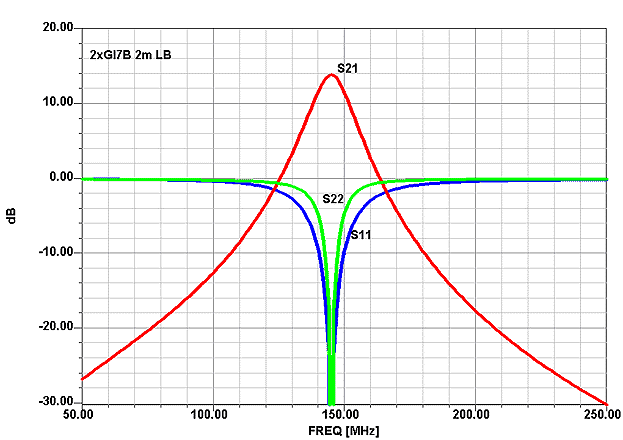

GI7B 2m PA Gain Curves Click on drawings for zoom |
|
 1 x GI-7B |
 2 x GI-7B |
|
2 x GI7B 2m PA Click on drawings for zoom |
||||
Side View
|
Top View
|
Bottom View
|
End View
|
|
|
Click
on schematics for zoom
|
 1 x GS31B |
 2 x GS-31B |
|
1 x GS31B 2m PA Click on drawings for zoom |
||||
Side View
Top View
|
Bottom View
|
End View
|
||
|
GS-31B 2m PA Gain Curves Click on drawings for zoom |
|
 1 x GS-31B |
 2 x GS-31B |
|

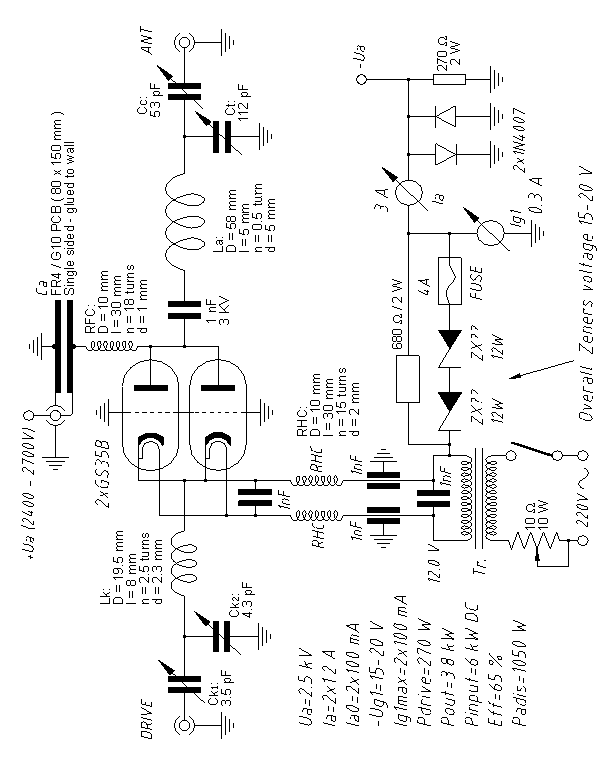

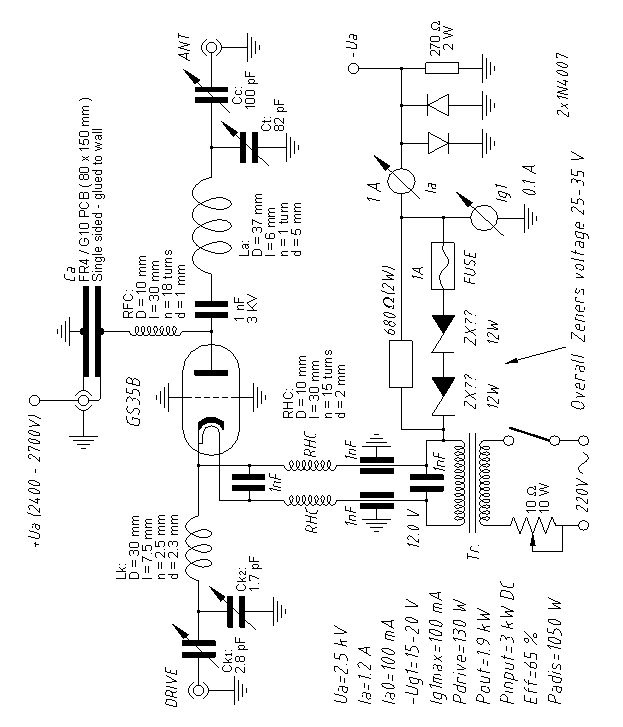

Click on schematics for zoom |
 1 x GS35B |
 2 x GS35B |
|
GS35B 2m PA Gain Curves Click on drawings for zoom |
||||
 1 x GS-35B |
 2 x GS-35B |
|||
