PAs designed by
YU1AW
Click on call for e-mail
432 MHz QRO
|
Click
on schematic for zoom
Click on caption for mechanical drawings |
 2 x GI7B |
 1 x GS31B |
 1 x GS35B |
|

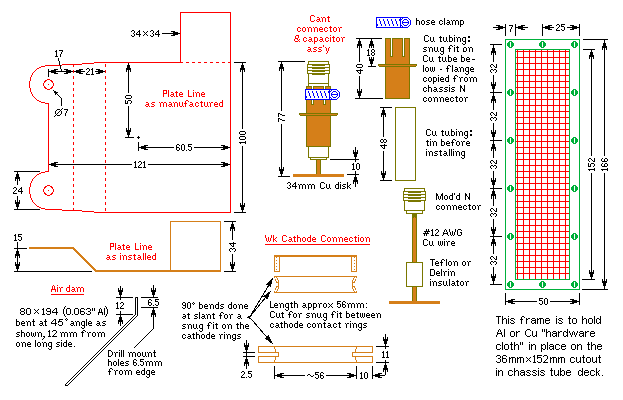

2 x GI7B 70cm PA Click on drawings / pictures for zoom |
|||
 Top View |
 Side view |
 View from Tube End |
|
 Bottom layout |
 Piece-Part Dwgs |
||
|

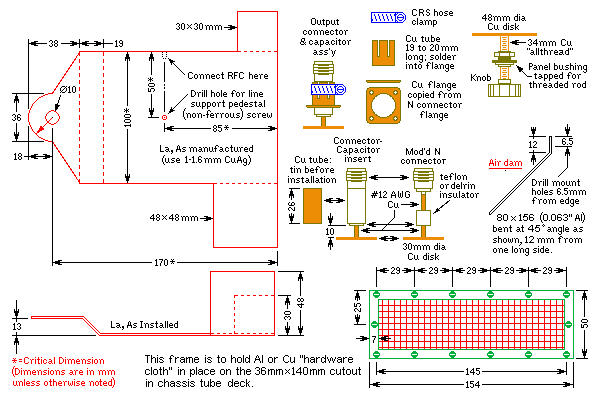

1 x GS31B 70cm PA Click on drawings for zoom |
||
 Side View |
 Top View |
 Plate Line, etc. |
|

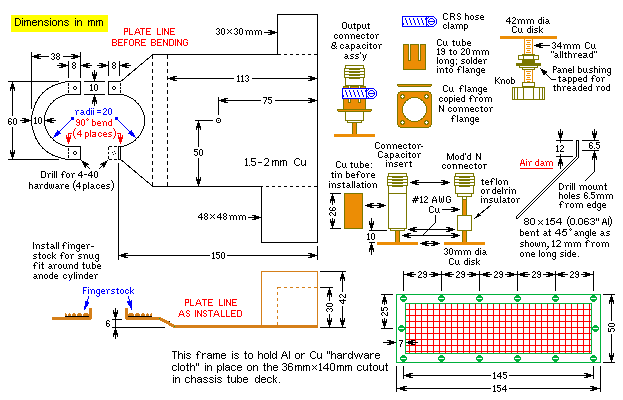

1 x GS35B 70cm PA Click on drawings for zoom |
||
 Side View |
 Top View |
 Plate Line, etc. |
