Duoband PAs designed by
YU1AW
Click on call for e-mail
6 & 2 Meter QRO UNDER CONSTRUCTION!
|
Click on schematic for zoom - Click on caption for more information |
 1 x GI-7B, 6&2m |
 1 x GS-31B, 6&2m |
 1 x GS-35B, 6&2m |
|
1 x GI7B 6&2m PA Click on drawings for zoom |
|||
 L & C + Performance Data |

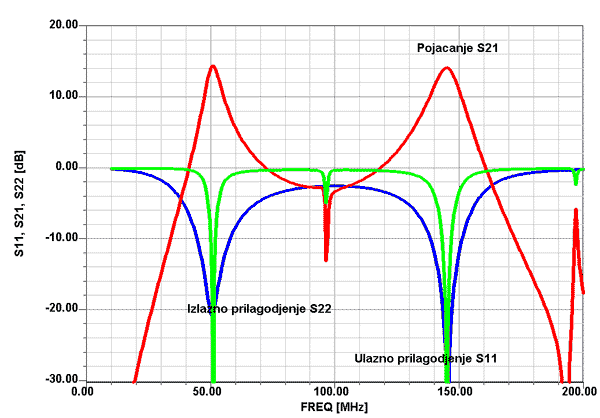

 Gain Curves |
||
|
1 x GS31B 6&2m PA Click on drawings for zoom |
|||

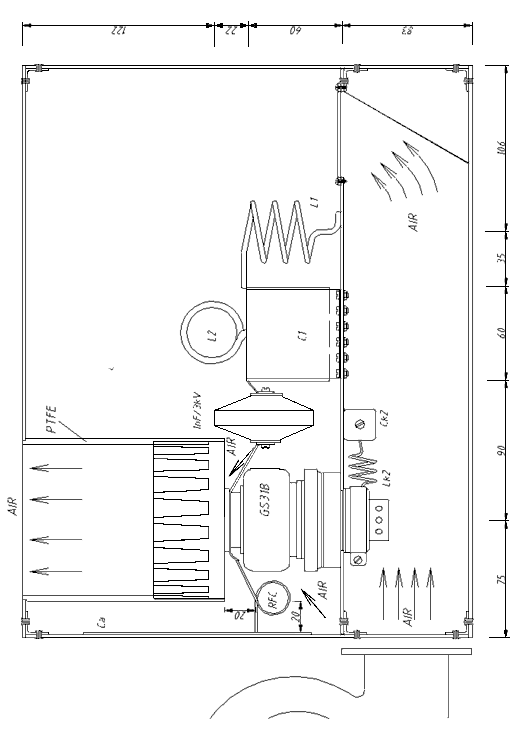

 Side View |

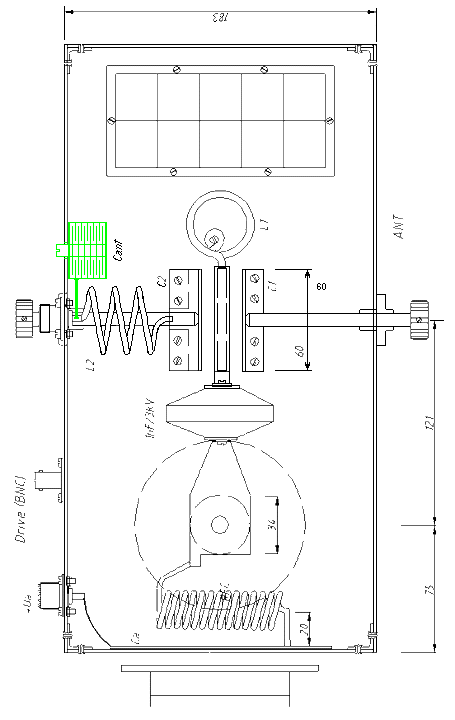

 Top View |

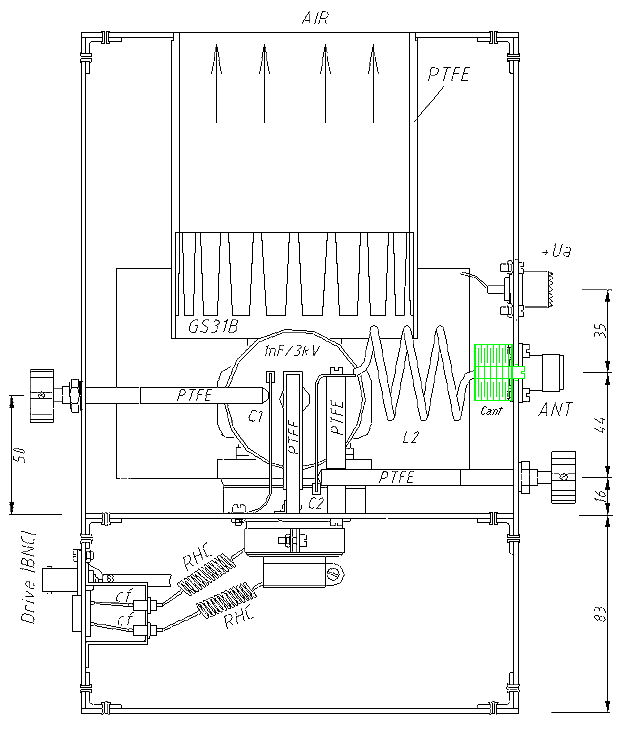

 End View |
 Bottom View |

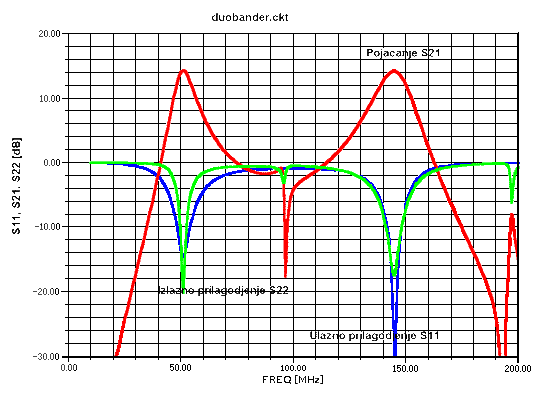

 Gain Curves |

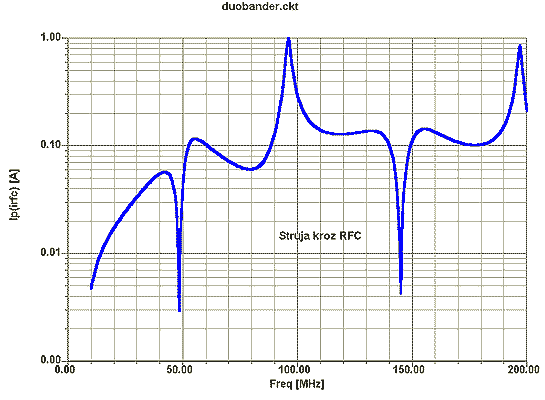

 Current in RFC |
 L1,L2,Ca Current |

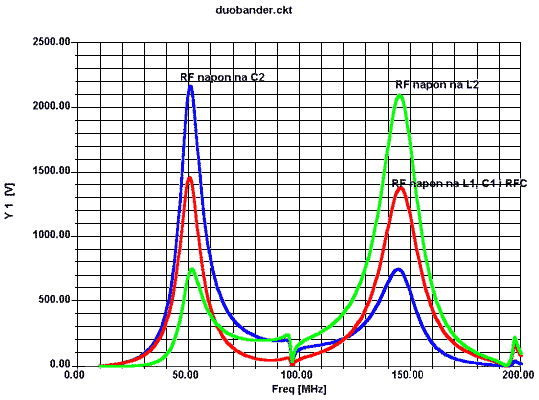

 L1,L2,Ca Voltage |
